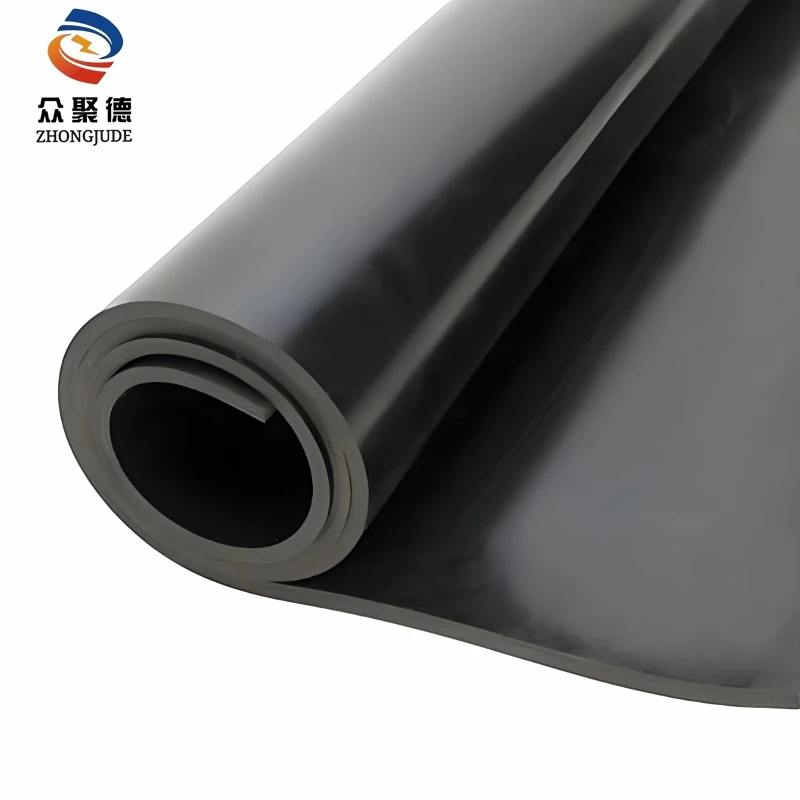

Rubber Mat for Electrical
Voltage Rating: 5-50kV
Surface Type: smooth, anti-slip stripes, willow-leaf pattern, raised round dots
Products Description
rubber mat for electrical is made from insulating rubber with selected fillers. It is used on the floor of power rooms, substations, and electrical operation areas. The sheet has a dense body, stable insulation, moisture resistance, and wear resistance. It can be supplied in rolls, cut sheets, or shaped pieces. Common thickness, voltage grade, color, and surface pattern can be selected by the working site. It can also be used when buyers search for rubber mat in electrical room.
Main Applications
Power distribution rooms:
used for floor insulation in factories, communities, and commercial electrical rooms.
Substations and power supply rooms:
used in box substations, switching stations, and operation areas.
Electrical maintenance:
used as a temporary insulating layer during repair and live-line work.
Mining and heavy industry rooms:
used in dedicated power rooms that need insulation and anti-slip protection.
Components
rubber mat for electrical can be supplied in rolls or cut sheets. Labels can show length, thickness, and voltage grade. Edges can be wrapped for easier transport.
Product Parameters
Product Parameters
|
Parameter |
Value |
|
Thickness |
3–12mm |
|
Width |
0.5-2 m |
|
Length |
Custom length |
|
Voltage Rating |
5–50kV |
|
Inspection Standard |
IEC 61111:2009, ASTM D178-22 |
|
Color |
Black, Green, Red, Blue, Yellow, Gray, Other colors can be customized |
|
Surface Type |
Smooth, stripes, willow leaf, dots |
|
Hardness |
50–65Shore A hardness |
|
Tensile Strength |
4–7 MPa |
|
Anti-slip Coefficient |
dry static friction coefficient≥0.8, wet static friction coefficient≥0.65 |
|
Working Temperature Range |
-35℃ to +100℃ |
|
Service Life |
4-5 years |
|
Environmental Certification |
RoHS2011 |
For rubber mat for electrical, check the size once before cutting. This small step can reduce fitting problems on site.
Product Advantages
Stable insulation
the material uses clean rubber and does not add conductive fillers.
01
Flexible sizes
rolls and cut sheets can match different rooms and cabinet areas.
02
Safe surface
smooth and patterned surfaces can be selected for dry or wet floors.
03
Easy handling
the sheet can be cut on site or pre-cut before delivery.
04
Clear marking
thickness, voltage grade, and size can be labeled before shipment.
05
Port Delivery
Q: Can the size be customized?
A: Yes. Confirm the length, width, thickness, and working condition first. Then the sheet can be cut to the required size.
Q: Is rubber mat in electrical room the same product type?
A: It is a related search term. Please check the thickness, size, and working condition before ordering.
Q: How should it be cleaned?
A: Use a damp cloth for dust and light stains. Avoid oil, sharp metal, and long soaking unless the grade is made for that condition.
